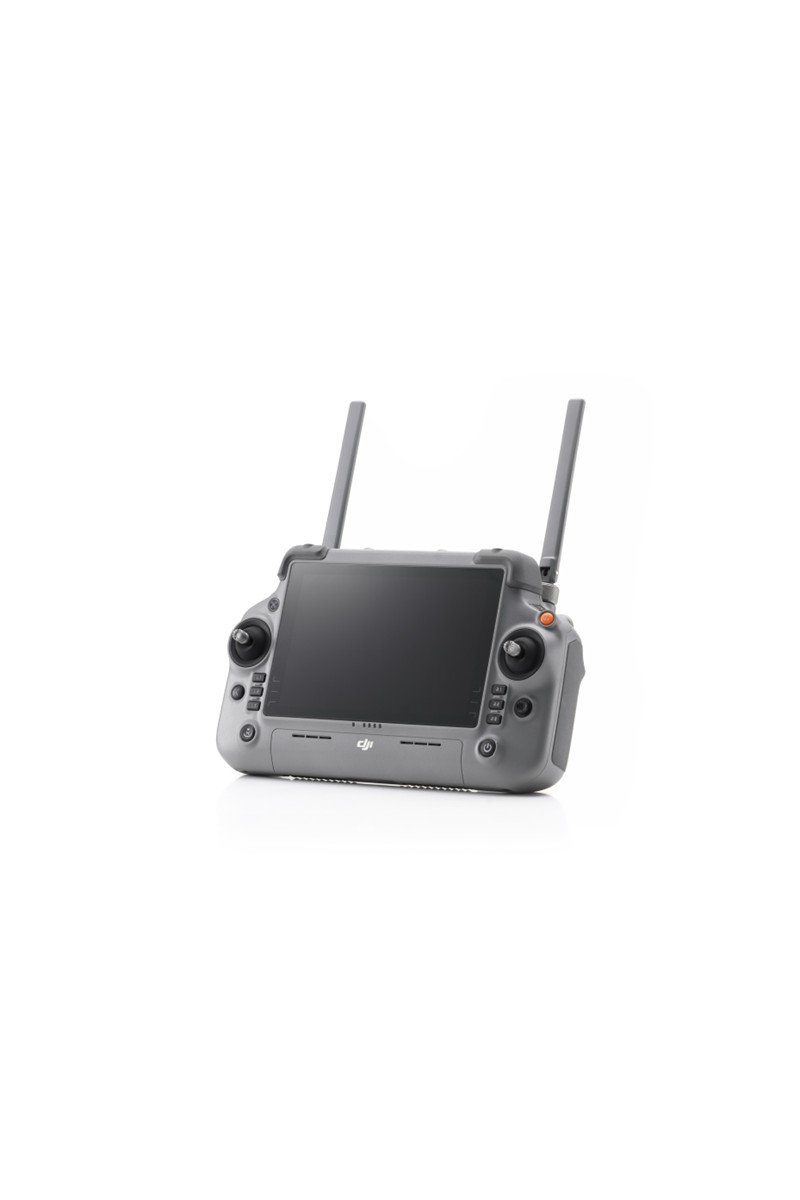

DJI RC Plus 2 Enterprise Enhanced

Overview

DJI RC Plus 2 Enterprise is equipped with a new high-brightness display, ensuring clear visibility even under strong sunlight. The controller features an IP54 protection rating and operates within a temperature range of -20°C to 50°C (-4°F to 122°F). With the powerful O4 Enterprise video transmission, a built-in high-gain antenna array, and support for both SDR and 4G hybrid transmission, it provides a stable and smooth video feed in both urban and mountainous environments.

Highlights

High-bright display. IP54 protection rating. O4 Enterprise video transmission. Support for both SDR and 4G hybrid transmission.

Tips

1. Download and read the safety guidelines and user manual of the compatible aircraft from the DJI official website before using for the first time.

2. Stay alert when using the remote controller to control an Unmanned Aerial Vehicle (UAV). Carelessness may result in serious harm to yourself and others.

3. Make sure to protect the remote controller during use or transportation. Avoid heavy impacts that may damage the touchscreen, joysticks, or other components.

In The Box

Remote Controller ×1

Specifications

OcuSync

Operating Frequency Range* : 5.150-5.250 GHz; 5.725-5.850 GHz

Transmitter Power (EIRP)

2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)

5.1 GHz: <23 dBm (FCC/CE)

5.8 GHz: <33 dBm (FCC), <14 dBm (CE), <30 dBm (SRRC)

Wi-Fi

802.11 a/b/g/n/ac/ax

Operating Frequency Range*: 2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz

Transmitter Power (EIRP)

2.4 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)

5.1 GHz: <26 dBm (FCC), <23 dBm (CE/SRRC/MIC)

5.8 GHz ＜26 dBm (FCC/SRRC), ＜14 dBm (CE)

Bluetooth

Bluetooth 5.2

Working frequency: 2.4000-2.4835 GHz

Transmitter Power (EIRP): <10 dBm

General

Model: TKPL2

Battery Type: Li-ion (6500 mAh @ 7.2 V)

Chemical System: LiNiCoAlO2

It is recommended to use USB-C chargers with a maximum rated power of 100W

Rated Power: 12.5 W

GNSS: GPS + Galileo + BeiDou

Video Output Port: HDMI Type-A

Operating Temperature: -4° to 122° F (-20° to 50° C)

Storage Temperature

Within one month: -22° to 113° F (-30° to 45° C)

One to three months: -22° to 95° F (-30° to 35° C)

Three months to one year: -22° to 86° F (-30° to 30° C)

Charging Temperature: 41° to 104° F (5° to 40° C)

* Operating frequency allowed varies among countries and regions. Please refer to local laws and regulations for more information.

Compatibility

DJI Matrice 4D Series

DJI Matrice 4T Enterprise Series aircraft

DJI Matrice 4E Enterprise Series aircraft

DJI Matrice 400
