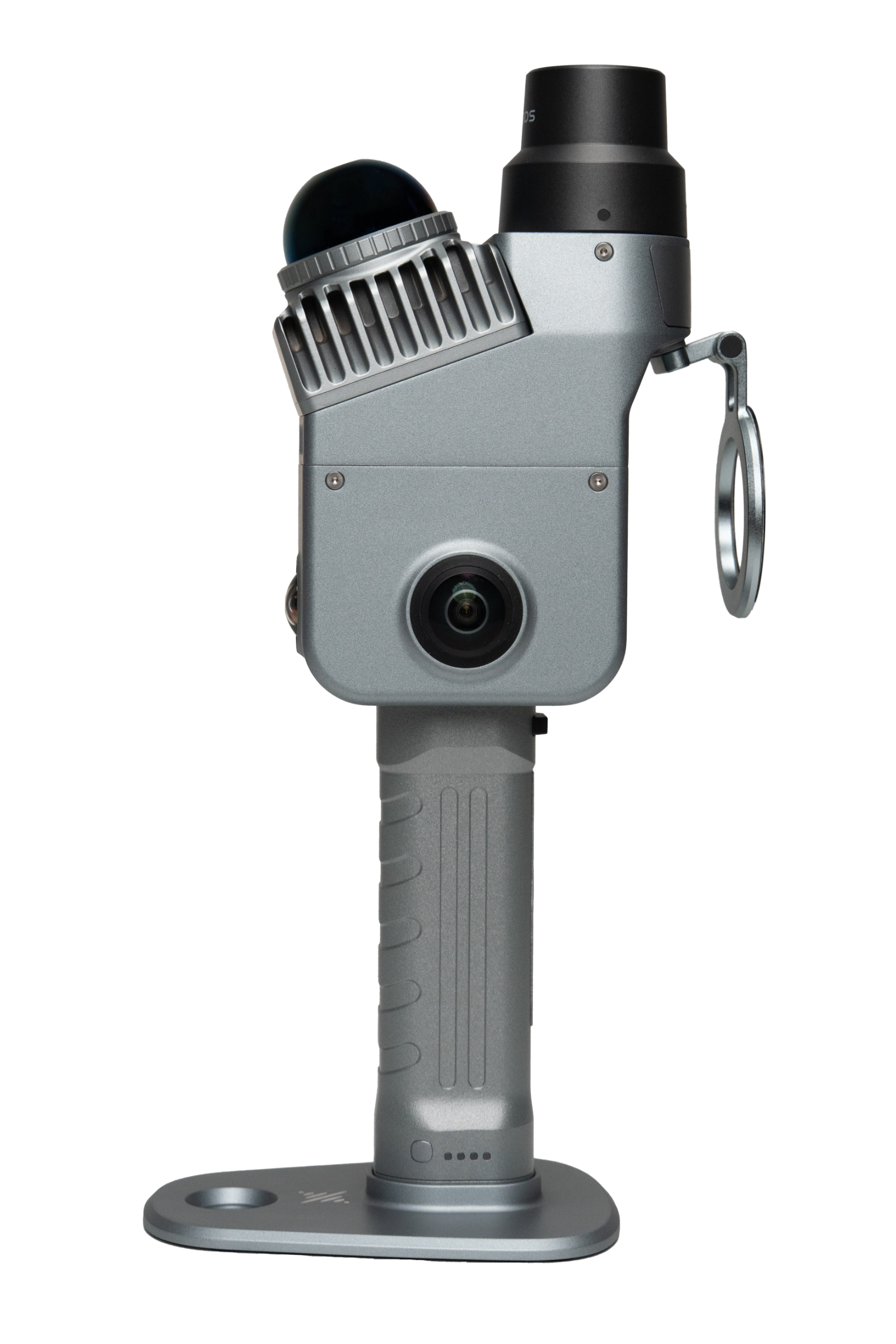

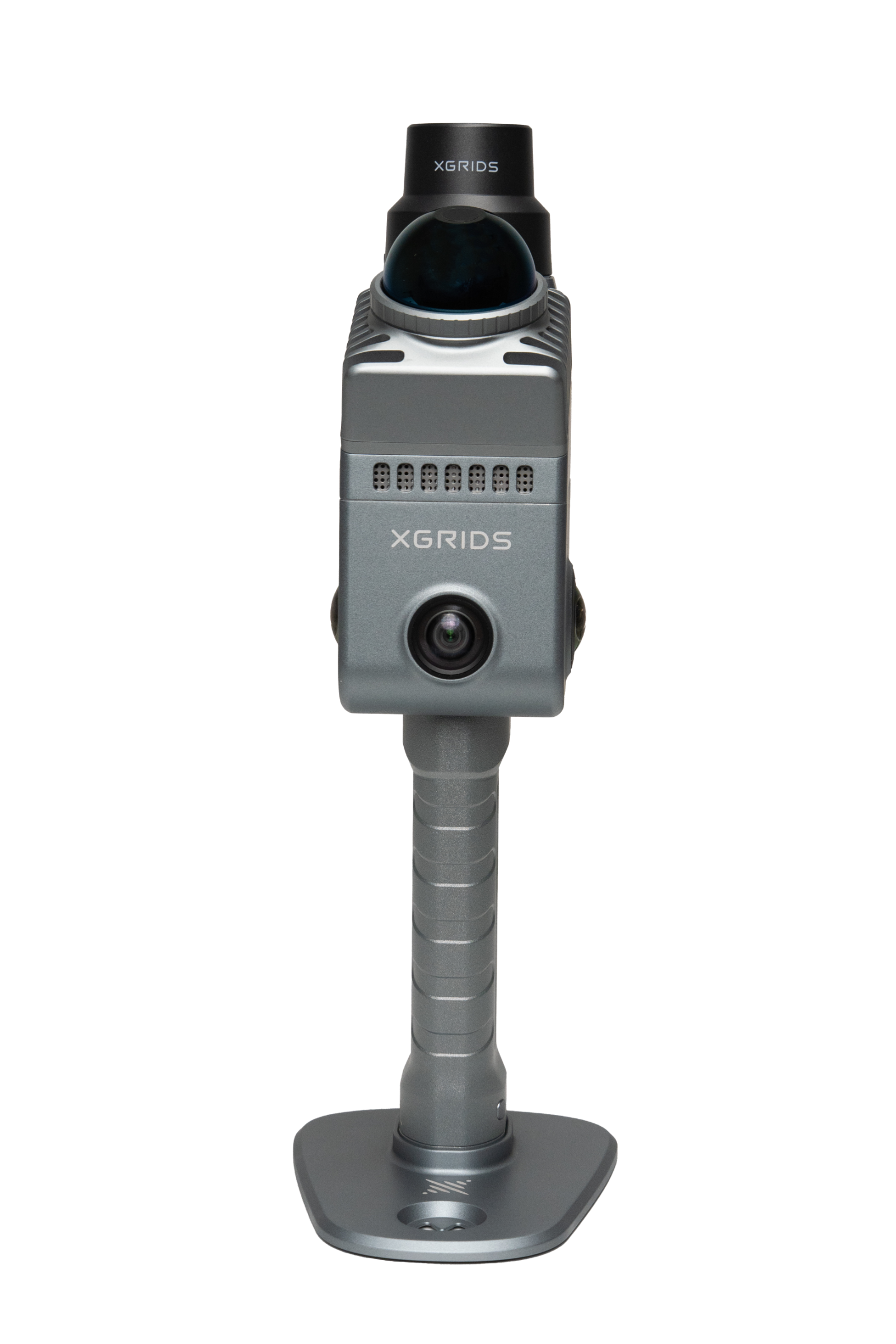

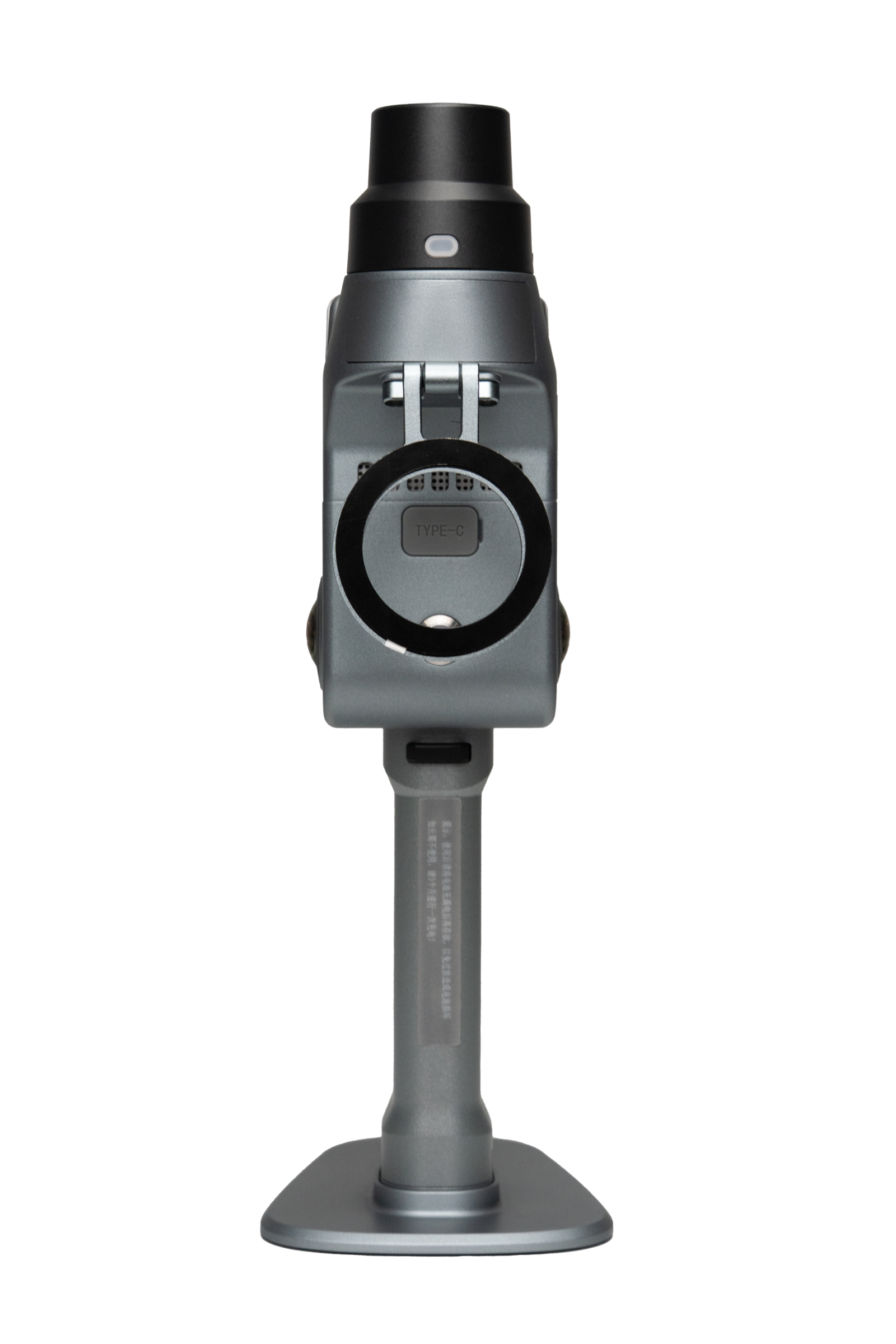

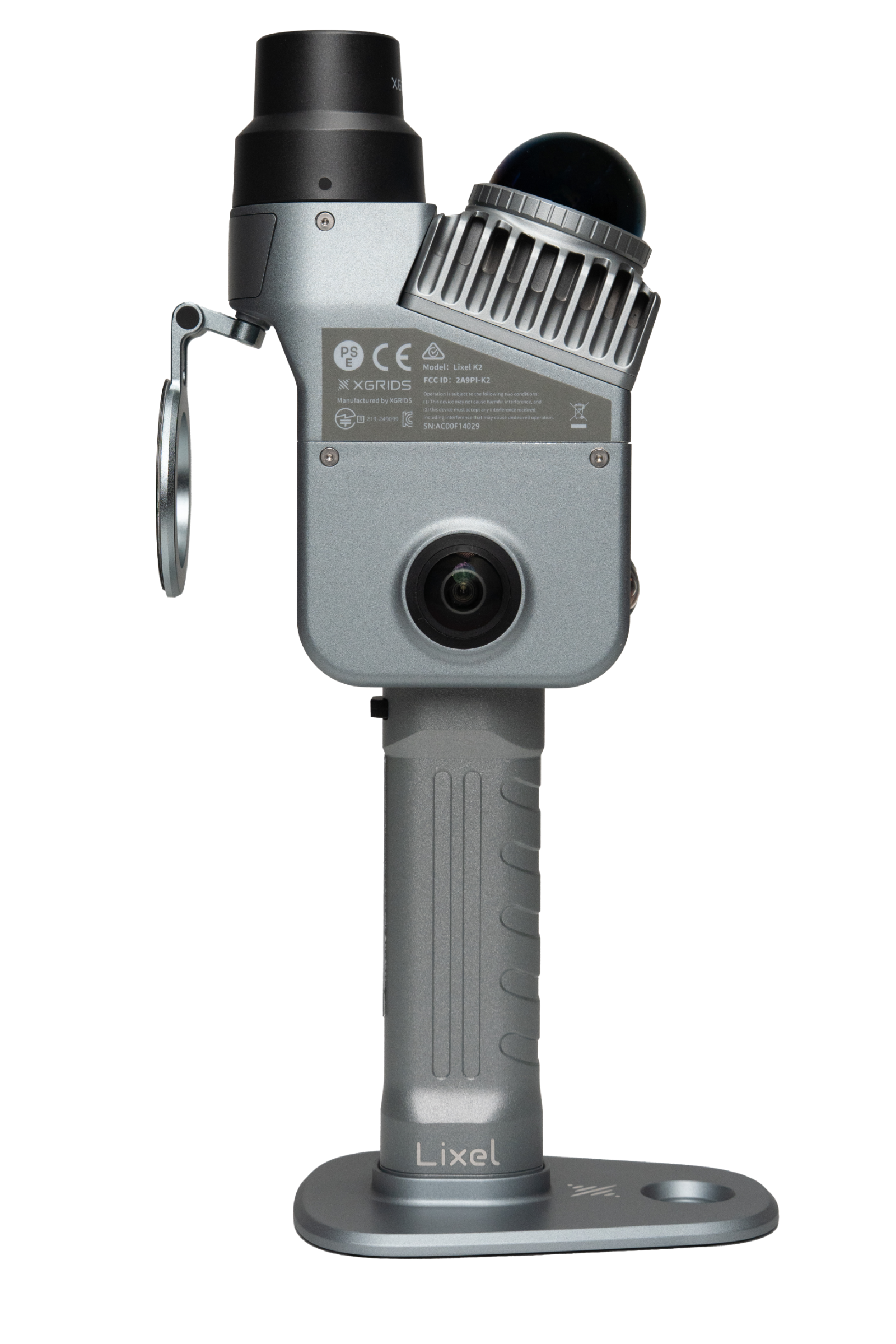

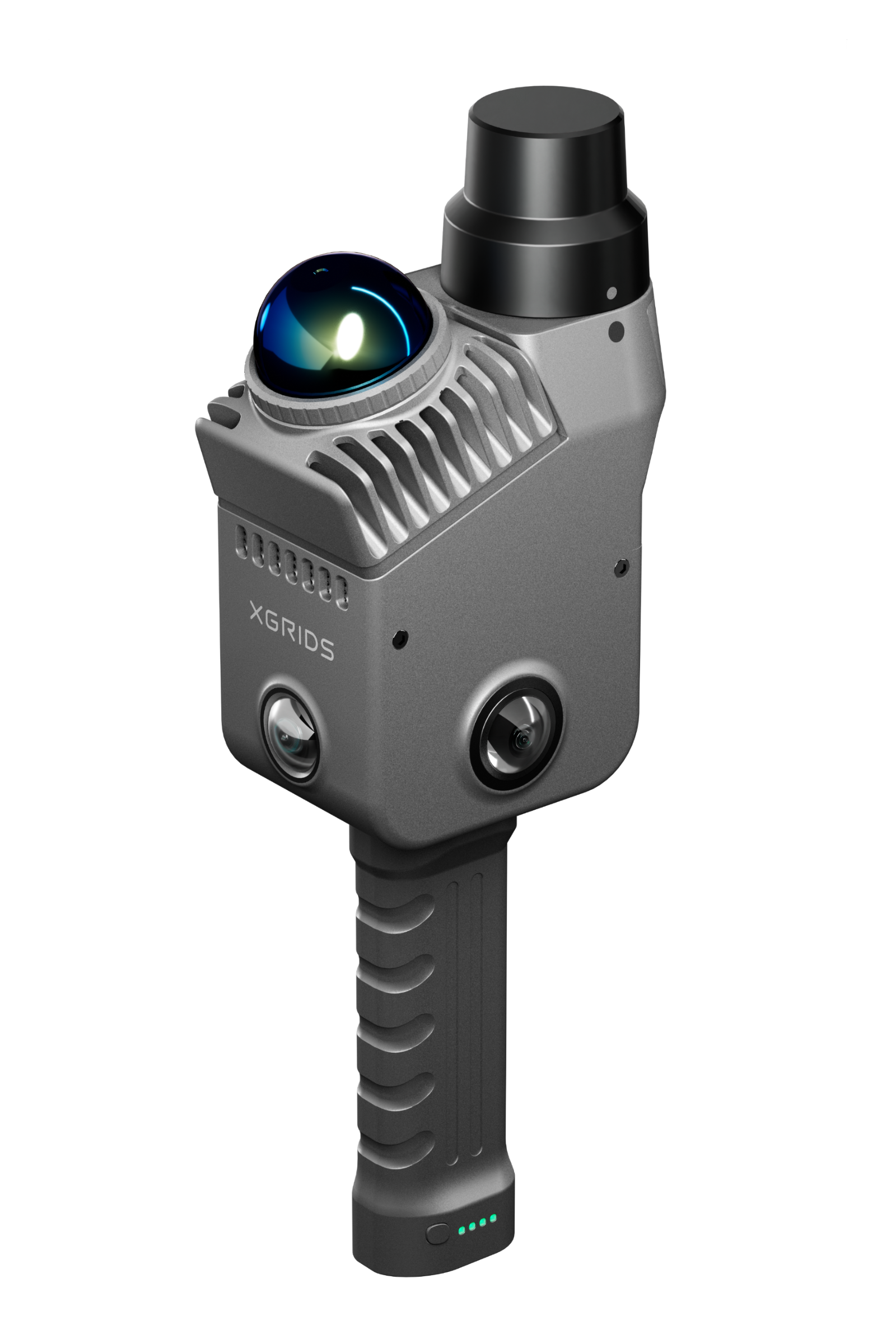

XGRIDS Lixel K2 Handheld LiDAR Scanner

Enquire Now

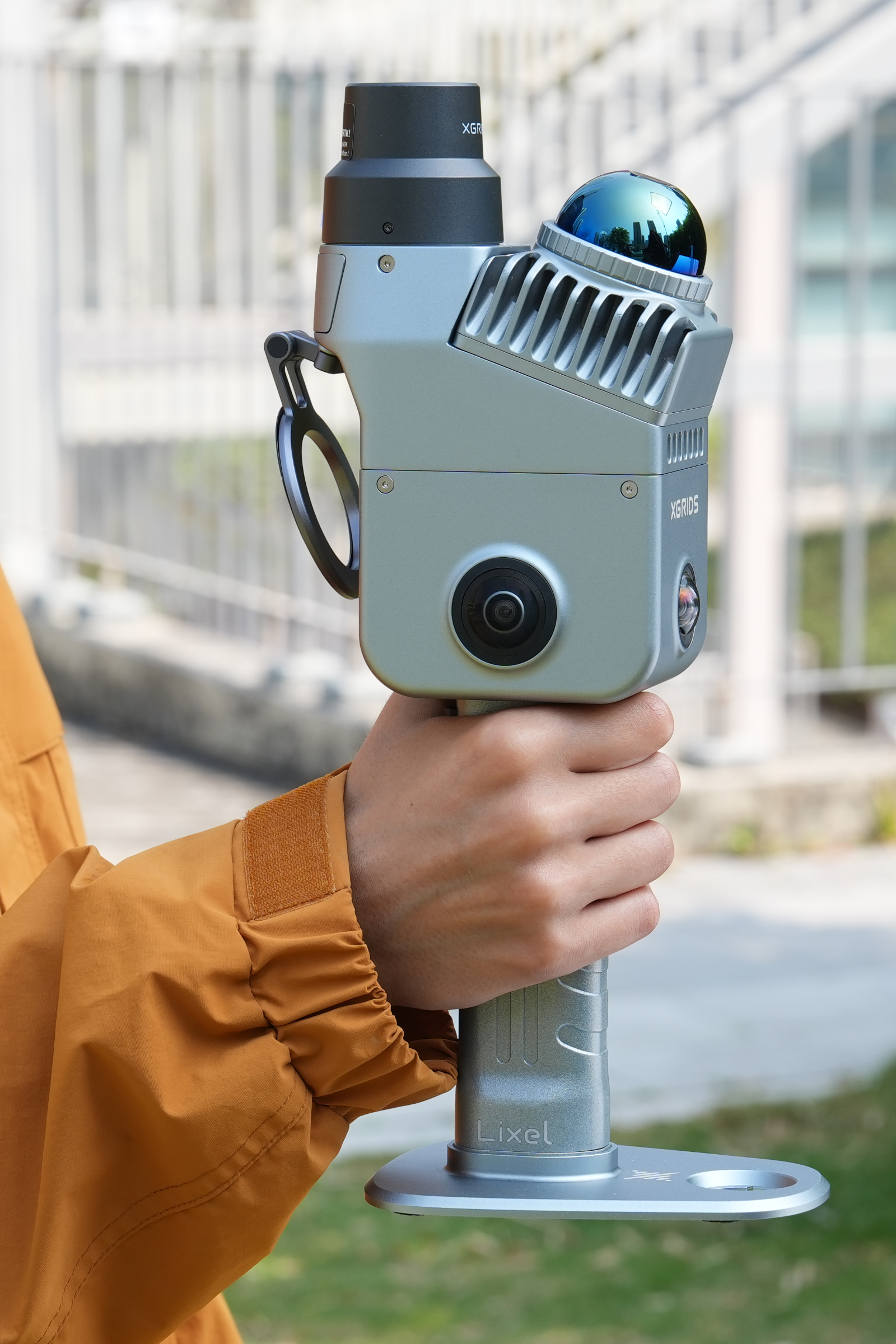

The XGRIDS Lixel K2 is a handheld SLAM LiDAR scanner. Walk through a building or site and it builds a measurable, full-colour point cloud as you go. No tripod, no setup between stations, no second operator. At roughly 1.2 kg it runs off one hand for the length of a battery.

Accuracy is 1 cm relative and 3 cm absolute, with post-processed point cloud thickness of 1 cm or less. Walls, openings and edges come through tight enough to draft from directly. The RTK module is built into the scanner rather than bolted on, so real-time centimetre-level positioning is standard rather than an upgrade.

Three cameras, two fisheye and one forward-facing, colourise the cloud as it is captured. You see the coloured result live on your phone through the LixelGO app, which means gaps and missed coverage get picked up while you are still on site instead of back at the desk.

One capture feeds multiple deliverables. LixelStudio 4.0 handles point cloud processing, mesh generation, volumetrics and panoramic output. Lixel CyberColor turns the same scan into 3D Gaussian Splatting for digital twin and visualisation work.

Suited to real estate measurement, as-built and Scan to BIM capture, construction progress documentation, heritage recording and stockpile volumetrics.

Key Specs:

• Approx. 1,200 g including battery and base

• Relative accuracy 1 cm (RMSE)

• Absolute accuracy 3 cm horizontal and 3 cm elevation (RMSE)

• Repeatability 2 cm

• Post-processed point cloud thickness 1 cm or less

• Class 1 905 nm LiDAR, 200,000 points per second

• Field of view 360° × -7° to +52°

• Scan range 40 m or more at 10% reflectivity, 100 m maximum

• Three cameras, two fisheye and one forward-facing, 4000 × 3000 each

• Panoramic field of view 200° × 200°, forward camera 100° × 85°

• 1/2" CMOS, rolling shutter

• Built-in RTK module

• 512 GB internal eMMC storage

• USB 3.1 Gen2 data interface

• WiFi 2.4 GHz and 5 GHz, Bluetooth

• Aviation-grade aluminium housing, IP54

• Operating temperature -20°C to 50°C

• Clip-on 1,900 mAh battery, approx. 1.5 hours per charge

• Power consumption under 20 W

• Point cloud output .las, images .jpg

Includes:

• XGRIDS Lixel K2 × 1

• Battery × 2

• Charger and converter × 1

• Phone mount × 1

• Control point base × 1

• Protective cover × 1

• USB-C cable × 1

• Device-to-phone cable × 1

• Reflective targets × 30

• Polishing cloth × 1

• Carrying case × 1

Extension pole and adapter kit available separately.

Available to order.
