Transform Your Operations with Prisma Tech’s DJI Dock 3 Solutions

An intelligent drone-in-a-box solution, engineered for 24/7 remote operations, inspection, surveillance, precision mapping, and seamless data collection — delivered and supported by Prisma.

EXPLORE

The Future of Autonomous Aerial Intelligence

  • Unmanned Missions

    The DJI Dock 3 allows drones to launch, land, and recharge automatically — no on-site pilot needed. This means you can schedule missions anytime, even in remote or hard-to-access locations.

  • Intelligent Features

    Fully integrated with DJI FlightHub 2, the system leverages intelligent features to help plan, monitor, and adapt missions. While some input is manual, these tools simplify operations by improving task execution and reducing complexity across flights.

  • Advanced Payloads

    Equipped with high-performance cameras, laser rangefinders, and thermal imaging, the Matrice 4D delivers precision data for detailed mapping, inspections, and multi-layer analysis.

  • IP55-Rated Durability

    Engineered to handle Australia’s toughest conditions, the Dock 3 operates in rain, dust, and extreme temperatures — ensuring uninterrupted data collection year-round.

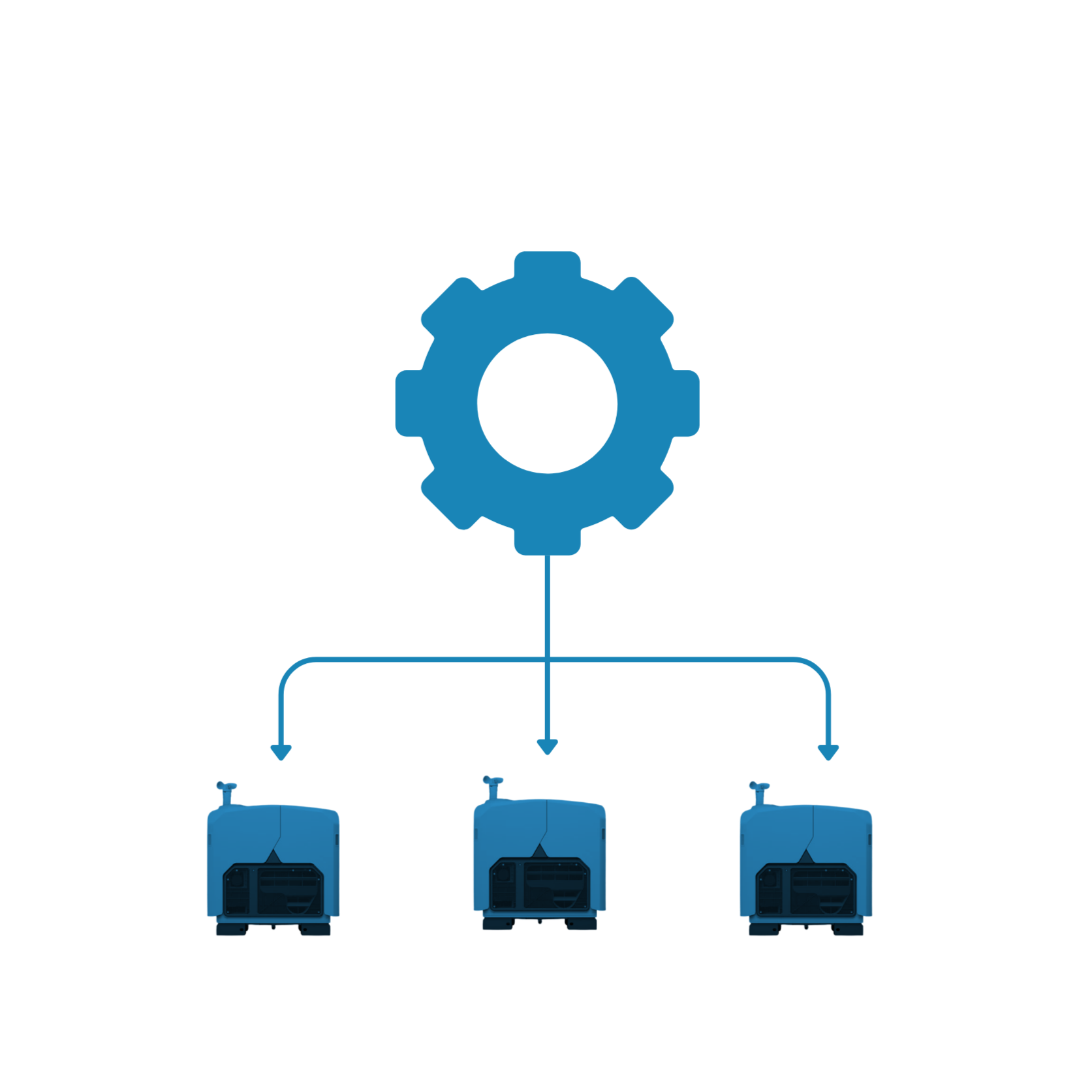

  • Fleet-Ready System

    Designed for scalability, this solution supports multiple docks and drones in coordinated operations, making it ideal for large-scale projects and enterprise deployment.

  • Data Delivered Fast

    Captured data is automatically uploaded to cloud platforms or DJI FlightHub 2, so your team can access insights instantly — no need to retrieve SD cards or wait for manual downloads.

Unlock real-time analytics, smarter decisions, and autonomous workflows with AI built for your environment by Prisma Tech.

  • From defect detection and object tracking to weed recognition and anomaly alerts, our custom AI/ML models turn your drone data into instant insights.

  • Whether you're in infrastructure, agriculture, or security, we tailor onboard intelligence that works seamlessly with the DJI Dock 3 and Matrice 4D Series.

Smarter Operations Powered by Prisma Tech’s Custom AI

ENQUIRE ABOUT OUR AI SOLUTIONS

Our Process?

  • Free consult

    We’ll start with a short discovery session to understand your goals.

  • Interactive Demo

    See the system in action — with a dock opening and a drone ready for take-off.

  • Tailored Package Setup

    We will tailor a solution and pricing package to suit your operational requirements.

  • Licensing & Compliance

    We’ll assist with licensing requirements to ensure compliant deployment for your site.

  • Deployment & Integration

    We assess the site, install the dock, and get everything connected.

  • Product Training

    Your team gets hands-on training with the system and software.

ENQUIRE NOW

Data Security & Enterprise Integration

We support implementation aligned to enterprise requirements, including the supply of DJI FlightHub 2 On-Premises licences for organisations that require greater control over data residency and infrastructure.

For customers requiring deeper system integration or bespoke platforms, DJI Cloud API access is available directly from DJI via a DJI Developer account. This enables organisations or their nominated technology partners to integrate third-party platforms with DJI Dock 3 operations, aligned to internal workflows and governance requirements.

Speak to Our Team

Support for BVLOS, EVLOS & Regulatory Approvals

We support organisations pursuing EVLOS and BVLOS operations by coordinating access to specialist regulatory expertise aligned with CASA requirements.

This includes guidance on ReOC pathways, CONOPS development, and SORA-based risk assessments, with operational frameworks designed for DJI Dock 3 and DJI FlightHub 2 deployments. Regulatory advisory services are delivered through established aviation partners as part of a coordinated engagement.

ENQUIRE ABOUT LICENSING

What DJI Dock 3 enables ?

From “one-off flights” to a repeatable operational capability, DJI Dock 3 is a drone-in-a-box platform designed for organisations and operators that need reliable, repeatable, remote missions across multiple sites.


Use it for:

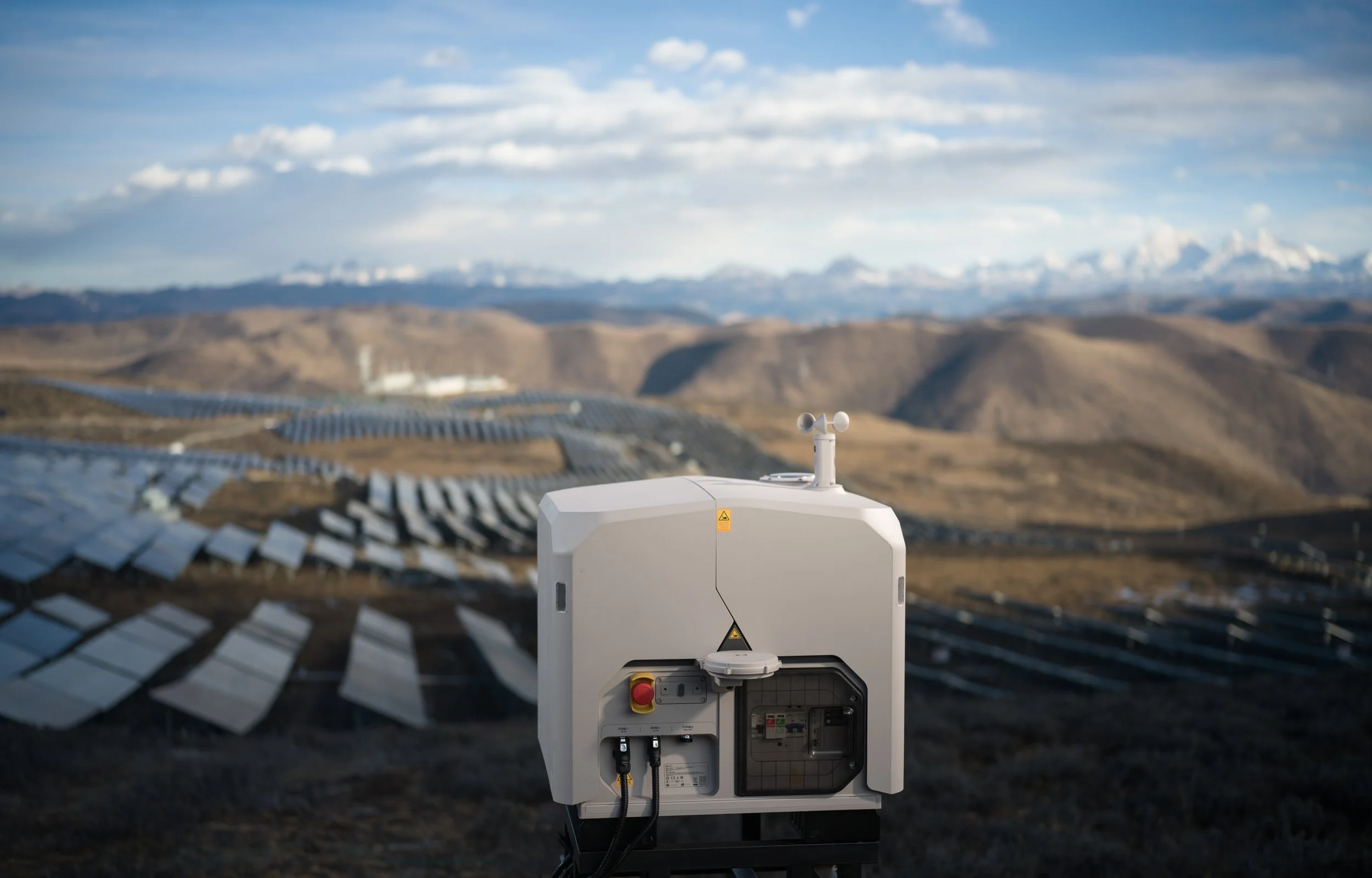

  • Critical infrastructure inspections (solar, wind, substations, transmission corridors, pipelines)

  • Site security & perimeter patrols (remote facilities, depots, yards, construction)

  • Incident response (rapid situational awareness, thermal search, post-event assessment)

  • Asset documentation & progress tracking (construction, mining, logistics)

Speak to Our Team

Compatible Drones

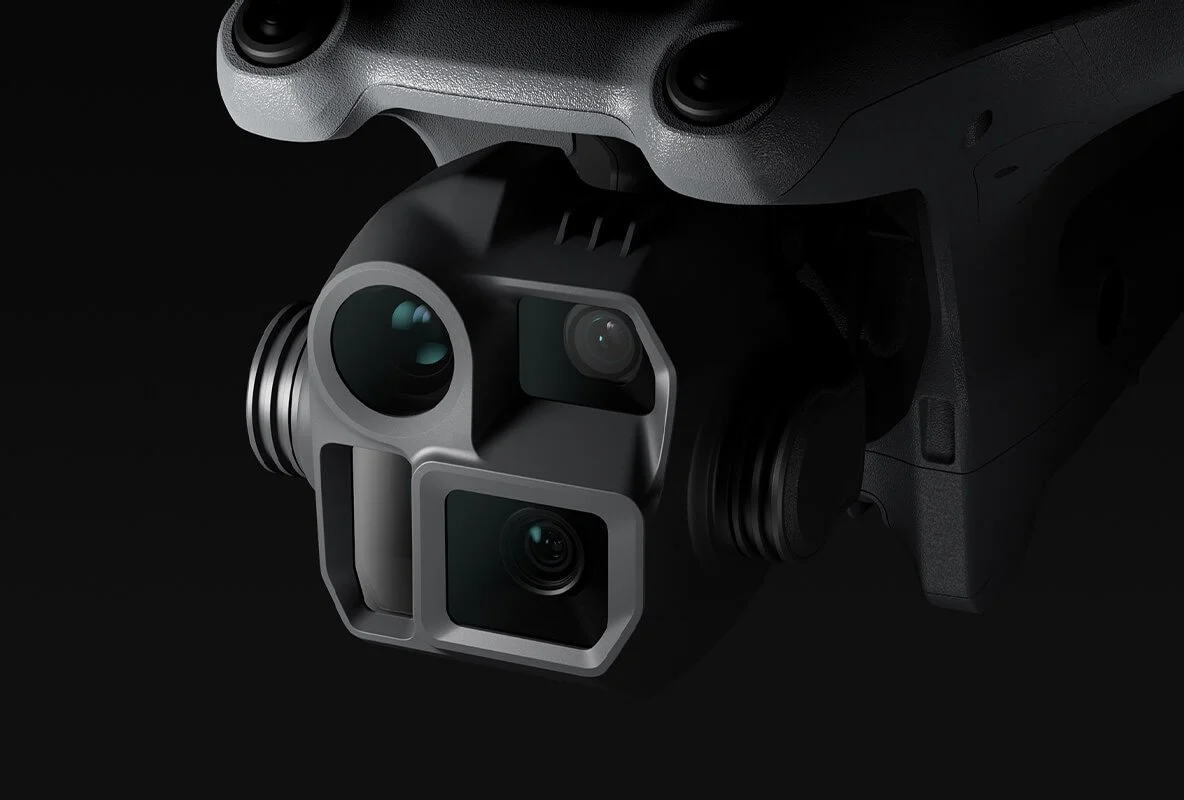

The DJI Dock 3 supports two enterprise aircraft options: the DJI Matrice 4D for survey-grade photogrammetry and mapping, and the DJI Matrice 4TD for inspection, surveillance, and search operations. Select the configuration that best suits your operational requirements.

DJI MATRICE 4D

    • 4/3 CMOS

    • 20MP Effective Pixels

    • f/2.8-f/11

    • 24mm Format Equivalent

    • Mechanical Shutter

    • 1/1.3-inch CMOS

    • 48MP Effective Pixels

    • f/2.8

    • 70mm Format Equivalent

    • 1/1.5-inch CMOS

    • 48MP Effective Pixels

    • f/2.8

    • 168mm Format Equivalent

    • Measurement Range: 1800 m (1 Hz);

    • Oblique Incidence Range (1: 5 Oblique Distance): 600 m (1 Hz)

    • Blind Zone: 1 m

    • Range Accuracy (m): ± (0.2 + 0.0015 × D)*

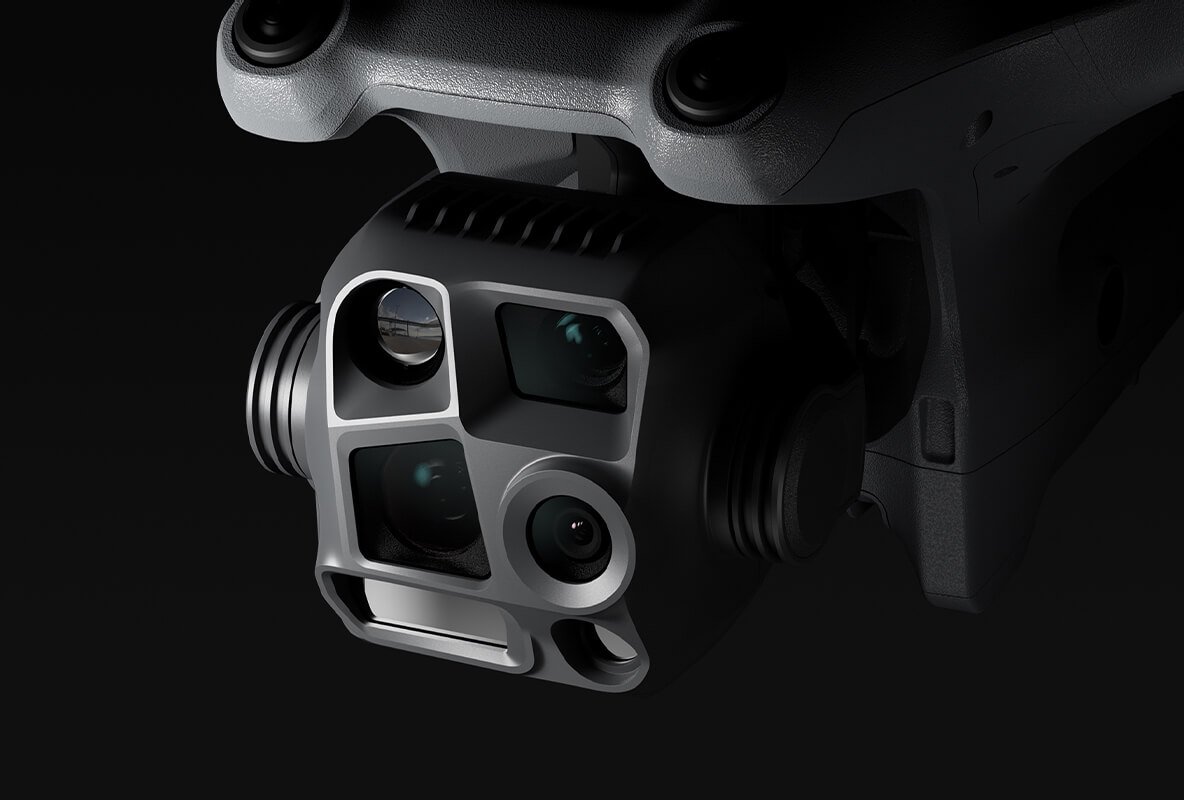

DJI MATRICE 4TD

    • 1/1.3-inch CMOS

    • 48MP Effective Pixels

    • f/1.7

    • 24mm Format Equivalent

    • 1/1.3-inch CMOS

    • 48MP Effective Pixels

    • f/2.8

    • 70mm Format Equivalent

    • 1/1.5-inch CMOS

    • 48MP Effective Pixels

    • f/2.8

    • 168mm Format Equivalent

    • Measurement Range: 1800 m (1 Hz);

    • Oblique Incidence Range (1: 5 Oblique Distance): 600 m (1 Hz)

    • Blind Zone: 1 m

    • Range Accuracy (m): ± (0.2 + 0.0015 × D)*

    • 6° FOV, 100m Illumination Distance

    • 640×512 Resolution

    • f/1.0

    • 53mm Format Equivalent

    • Uncooled VOx Microbolometer

    • Supports UHR Infrared Image mode

(*) D represents the measurement distance.
(**) Only available with Matrice 4TD. The NIR auxiliary light is suitable for the lighting needs of the tele camera.
(***) Only available with Matrice 4TD. DO NOT expose the infrared camera lenses to strong sources of energy such as the sun, lava, or a laser beam. Otherwise, the camera sensor may be burned leading to permanent damage.

Our DJI Dock 3 Bundles

DJI Dock 3 Surveillance & Inspection Hub

Bespoke Autonomous Surveillance & Inspection Drone Operations Bundle

  • Aircraft & Dock Hardware

    • 1x DJI Dock 3 Station

    • 1x DJI Matrice 4TD Drone

    • 1-Year DJI Care Enterprise Plus (Matrice 4TD)

    • 1x DJI RC Plus 2 Controller (manual take-over & dock-free operations)

    • 1x DJI AS1 Speaker (public address & deterrence applications)

    • 1x DJI AL1 Spotlight (night ops & inspection illumination)

    • 2× DJI Cellular 4G Dongle 2 (redundant connectivity)

    Power, Batteries & Dock-Free Operations

    • 2× DJI Matrice 4D Series Intelligent Flight Batteries

    • 1x DJI Matrice 4D Series 240W Charging Hub (3-battery bays)

    • 1x DJI 240W Power Adapter

    • 1x DJI Matrice 4D Series Carrying Case

    • 1x Spare Low-Noise Anti-Ice Propellers (Pair)

    • 1x Complimentary USB-C to USB-C Cable

    • 1x Complimentary 65W Charger (For DJI RC Plus 2)

    Software & Remote Operations

    • 1x DJI FlightHub 2 Standard Version

      • Complimentary 3-Month Quotas Allowance (first-time binding only)

    • 1x DJI FlightHub 2 Professional Version (12-Month Plan)

    Services & Enablement (Included*)

    • 1-Day DJI Dock 3 Setup & Training

      • Dock installation guidance

      • FlightHub 2 configuration

      • Mission planning & autonomous workflows

      • Operator handover and best practices

        *Offered on a case-by-case basis

    Optional Hardware Add-Ons

    • DJI Dock 3 Vehicle-Mounted Gimbal Mount

    • DJI Power 2000 (backup / remote power supply)

    • DJI Matrice 4D Series Obstacle Sensing Module

    • AVSS DJI Matrice 4D Series Parachute System

    • DJI D-RTK 3 Fixed-Deployment Version

    Optional Software & Deployment Options

    • DJI FlightHub 2 Professional Version (12-Month Plan)

      • Advanced fleet management

      • Automated mission scheduling

      • Live streaming & event-based alerts

    • DJI FlightHub 2 On-Premises

    Optional Prisma Technologies Services

    • Prisma Tech AI Development Services

      • Custom AI model development (RGB / Thermal*)

      • Asset defect detection & classification

      • Workflow integration

      • Proof-of-concept and pilot deployments
        *Thermal model development is subject to data availability

    • DJI Dock 3 & Matrice 4D Series Maintenance Programs

    • Licensing & regulatory support

      • EVLOS and/or BVLOS pathways (CASA-aligned)

  • The DJI Dock 3 Autonomous Surveillance & Inspection Hub combines the DJI Dock 3 with the DJI Matrice 4TD to enable automated inspections, security patrols, and remote monitoring operations. Through DJI FlightHub 2, organisations can schedule missions, monitor assets remotely, and manage drone operations without requiring an on-site pilot.

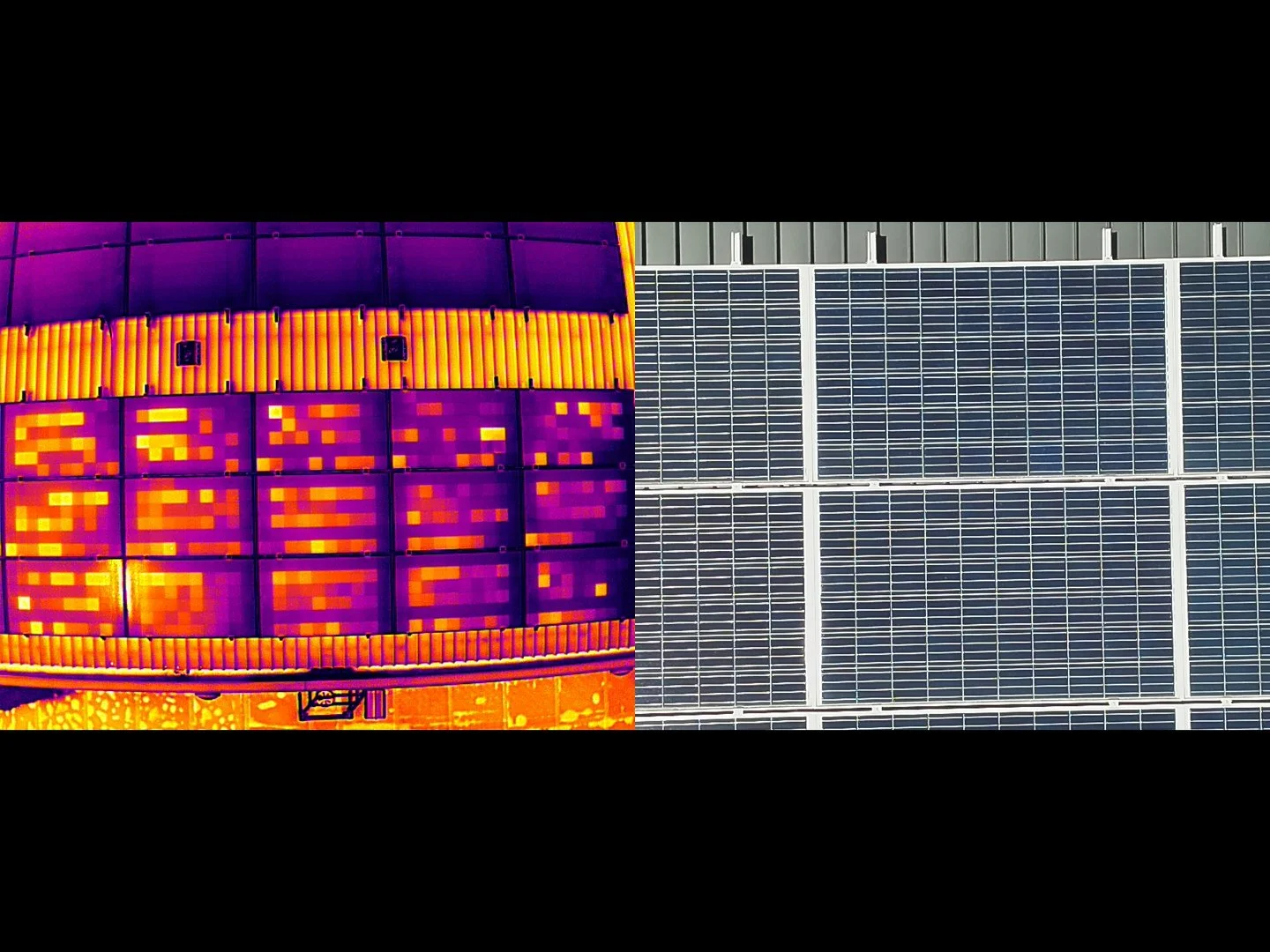

  • The DJI Matrice 4TD is equipped with a multi-sensor camera system designed for detailed inspection and reliable data capture in demanding environments. The thermal camera features a 640 × 512 px resolution with a 1280 × 1024 px high-resolution mode for enhanced detail when identifying heat anomalies, electrical faults, or temperature differentials. The aircraft also includes a 3× medium tele camera and a 7× telephoto camera, supported by up to 112× hybrid digital zoom, allowing operators to inspect assets from safe stand-off distances while maintaining image clarity.

    For accurate measurements and situational awareness, the Matrice 4TD also integrates a laser rangefinder with up to 1.8 km ranging capability, enabling precise distance measurements and target positioning. Built for industrial environments, the aircraft features an IP55 ingress protection rating and operates in temperatures ranging from –20°C to 50°C, ensuring reliable performance across harsh weather conditions and challenging deployment environments.

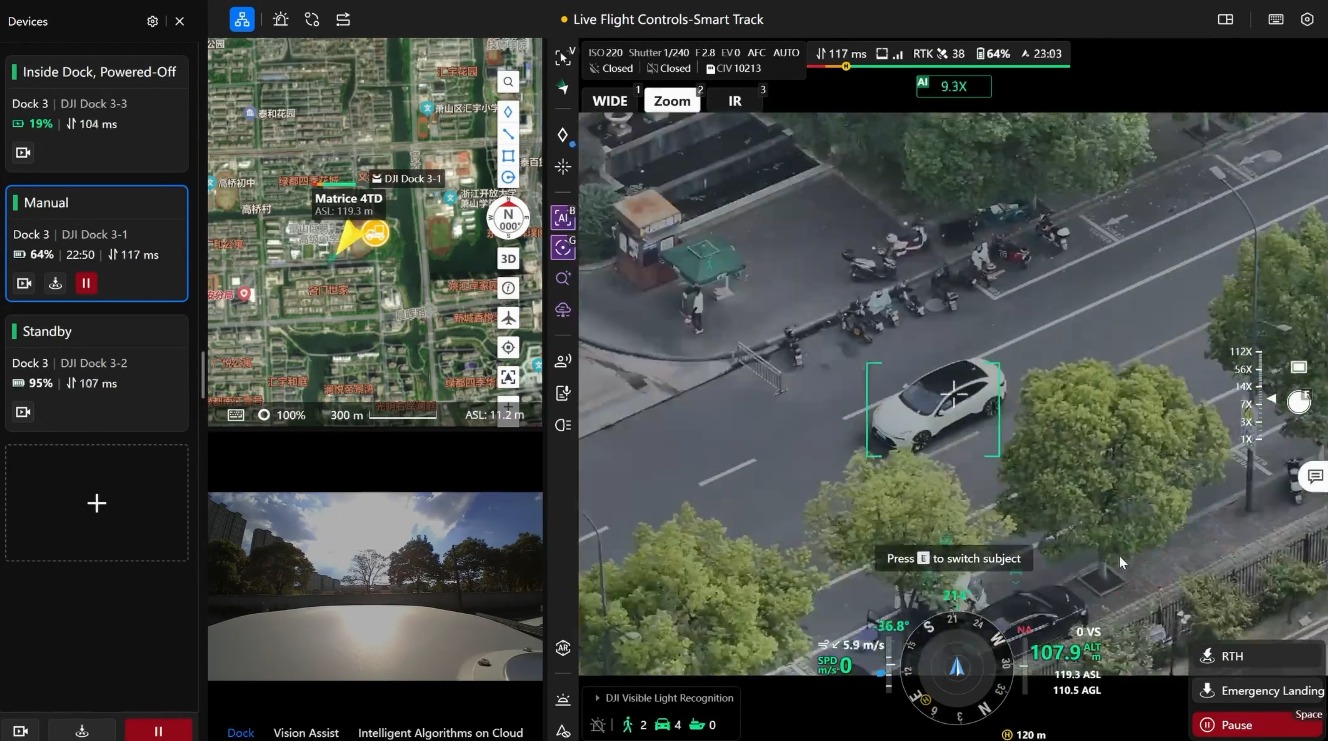

  • DJI FlightHub 2 enables centralised management of Dock 3 operations, allowing organisations to plan automated missions, monitor live drone telemetry, and manage multiple docks and aircraft from a single interface. Operators can schedule recurring inspections, configure waypoint and area missions, receive real-time alerts, and review captured imagery and flight logs through a secure cloud-based platform designed for enterprise fleet management.

    For organisations with strict IT and data governance requirements, DJI FlightHub 2 On-Premises is available as an optional deployment, allowing the platform to be hosted on private infrastructure. This supports air-gapped environments, internal data control policies, and integration with existing enterprise IT systems, making it suitable for government, critical infrastructure, and security-sensitive operations.

  • Experience the next generation of drone-in-a-box automation. From automated take-offs to seamless recharging and data delivery, the Dock 3 and Matrice 4TD redefine operational intelligence.

    Designed for critical infrastructure, utilities, mining, solar farms, construction, and public safety, DJI Dock 3 supports repeatable data capture and scalable drone programs. The platform allows organisations to expand from single deployments to multi-dock networks, supporting long-term autonomous drone operations aligned with enterprise asset management and security strategies.

ENQUIRE NOW

DJI Dock 3 Surveying & Mapping Hub

Autonomous Survey-Grade Mapping

  • Aircraft & Dock Hardware

    • 1x DJI Dock 3 Station

    • 1x DJI Matrice 4D Drone

    • 1-Year DJI Care Enterprise Plus (Matrice 4D)

    • 1x DJI RC Plus 2 Controller (manual take-over & dock-free operations)

    • 2× DJI Cellular 4G Dongle 2 (redundant connectivity)

    • 1x Set of 10 Black & White Ground Control Points (GCPs)

    Power, Batteries & Dock-Free Operations

    • 2× DJI Matrice 4D Series Intelligent Flight Batteries

    • 1x DJI Matrice 4D Series 240W Charging Hub (3-battery bays)

    • 1x DJI 240W Power Adapter

    • 1x DJI Matrice 4D Series Carrying Case

    • 1x Spare Low-Noise Anti-Ice Propellers (Pair)

    • 1x Complimentary USB-C to USB-C Cable

    • 1x Complimentary 65W Charger (For DJI RC Plus 2)

    Software & Remote Operations

    • 1x DJI FlightHub 2 Standard Version

      • Complimentary 3-Month Quotas Allowance (first-time binding only)

    • 1x DJI FlightHub 2 Professional Version (12-Month Plan)

    Services & Enablement (Included*)

    • 1-Day DJI Dock 3 Setup & Training

      • Dock installation guidance

      • FlightHub 2 configuration

      • Mission planning & autonomous workflows

      • Operator handover and best practices

        *Offered on a case-by-case basis

    Optional Hardware Add-Ons

    • DJI Dock 3 Vehicle-Mounted Gimbal Mount

    • DJI Power 2000 (backup / remote power supply)

    • DJI Matrice 4D Series Obstacle Sensing Module

    • AVSS DJI Matrice 4D Series Parachute System

    • DJI D-RTK 3 Fixed-Deployment Version

    Optional Software & Deployment Options

    • DJI FlightHub 2 Professional Version (12-Month Plan)

      • Advanced fleet management

      • Automated mission scheduling

      • Live streaming & event-based alerts

    • DJI FlightHub 2 On-Premises

      • For private server deployment

      • For air-gapped / enterprise IT environments

    • DJI Terra (Standard or Flagship)

      • Photogrammetry processing, RTK/PPK workflows, and GCP integration.

    • DJI Modify (Flagship)

      • 3D model editing, measurement, annotation, and collaborative review.

    • DJI Terra + DJI Modify Bundle

      • End-to-end DJI-native photogrammetry and model editing workflow.

    • Pix4Dmatic + Pix4Dsurvey (Pix4Dmatic 2.0)

      • High-accuracy photogrammetry with survey-grade CAD/GIS outputs.

    • Pix4Dfields (Agricultural use)

      • Rapid field mapping and crop analysis workflows.

    Optional Prisma Technologies Services

    • Prisma Tech AI Development Services

      • Custom AI model development (RGB)

      • Asset defect detection & classification

      • Workflow integration

      • Proof-of-concept and pilot deployments

    • DJI Dock 3 & Matrice 4D Series Maintenance Programs

    • Licensing & regulatory support

      • EVLOS and/or BVLOS pathways (CASA-aligned)

  • The DJI Dock 3 and Matrice 4D are engineered as a fully integrated autonomous drone solution, enabling reliable remote surveying and mapping operations without the need for an on-site pilot. The Dock 3 provides automated charging, environmental protection, and mission scheduling, while the Matrice 4D delivers high-accuracy aerial data capture supported by RTK positioning and repeatable flight paths. Together, they enable consistent, survey-grade data collection through scheduled or on-demand missions, making the platform well suited to corridor mapping, construction progress tracking, stockpile monitoring, and large-area surveying applications.

  • The DJI Matrice 4D features a survey-grade primary imaging payload built for high-accuracy photogrammetry and repeatable mapping workflows. Its 4/3” 20MP CMOS camera with a mechanical shutter enables distortion-free image capture during flight, while a rapid 0.5-second capture interval supports efficient large-area data collection. Improved factory-applied lens distortion correction helps maintain geometric accuracy, while DJI TimeSync technology synchronises the camera, flight controller, and RTK module to ensure precise geotagging of imagery. Combined with integrated RTK positioning, this allows the Matrice 4D to deliver consistent, survey-grade datasets suitable for orthomosaics, 3D reconstruction, and engineering-grade mapping outputs.

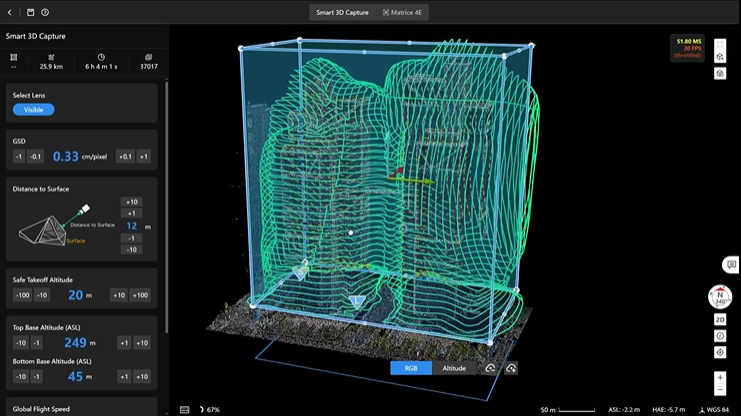

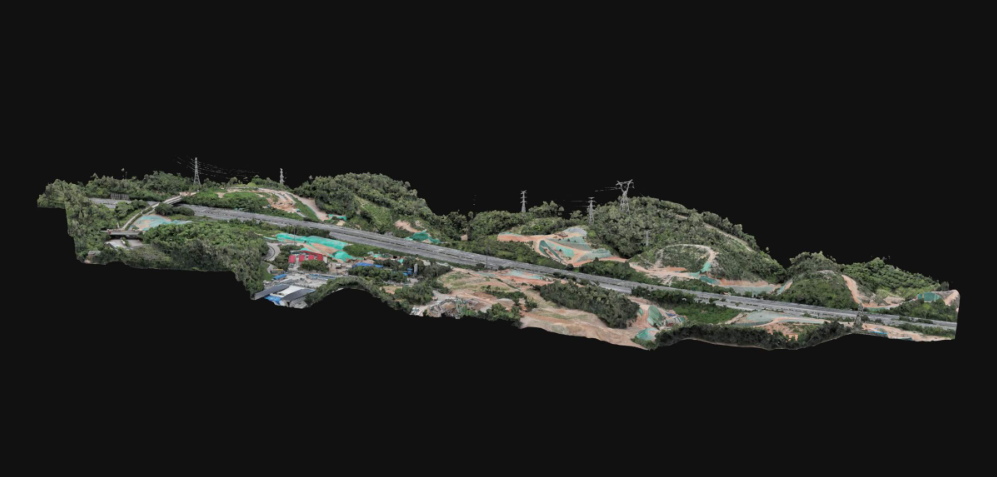

  • Mapping with DJI FlightHub 2 allows organisations to plan and execute automated drone mapping missions using the DJI Dock 3 and Matrice 4D, while managing data capture through a centralised remote operations platform. FlightHub 2 integrates the DJI Terra processing engine to generate 2D orthomosaics and 3D photogrammetry models, enabling rapid visualisation of survey data for engineering, construction, and asset management workflows. Photogrammetry imagery can also be downloaded for processing in third-party software such as Pix4D, while processed models can be exported for use in GIS, CAD, and digital twin platforms, ensuring compatibility with enterprise geospatial workflows.

  • The DJI Dock 3 and Matrice 4D combination enables fully autonomous drone mapping operations designed for enterprise surveying, infrastructure monitoring, and large-area data capture. With automated mission scheduling, precision RTK positioning, and repeatable flight paths, organisations can standardise data collection for applications such as construction progress tracking, corridor mapping, stockpile measurement, environmental monitoring, and asset management. By enabling remote deployment and scalable multi-dock networks, the DJI Dock 3 platform allows organisations to transition from manual drone surveys to continuous, automated mapping workflows aligned with enterprise geospatial and digital engineering requirements.

ENQUIRE NOW

FAQs

  • Yes — the system supports both fixed-site and vehicle-mounted setups, provided the vehicle remains stationary during operation. This allows flexible deployment across multiple sites using platforms like a Ute.

  • All mission data is uploaded via DJI FlightHub 2, allowing real-time access from anywhere with cloud integration.

  • We offer various complete bundles that include the DJI Dock 3 and either the Matrice 4D or the Matrice 4TD drone, along with batteries, mounting accessories, and optional accessories for standalone usage of the drones.

  • The drone recharges in approximately 25 minutes once docked, allowing for frequent, automated missions throughout the day.

  • Absolutely — the Dock 3 is IP56-rated, meaning it’s built to withstand rain, dust, and operate across a wide temperature range from -30°C to 50°C.

    The M4D Series drones are rated IP55 and have a takeoff and landing wind speed resistance of 12m/s.

  • In most cases, yes — both the DJI Dock and M4D Series drones require CASA licensing to operate in compliance with Australian aviation regulations. Our team can support you with guidance on certification and approval.
